FAQ

We recommend follow configuration for common platforms%

Windows: Requires a 64-bit processor, Windows 64 Bit or higher, Quad-core or higher, 8 Gb RAM DirectX11 support SSD

MacOS: Requires a 64-bit processor, MacOS Catalina or higher, Quad-core or higher, 8Gb RAM Metal 2 support SSD

How to install MANU link.

Select MANU in Applications

Perform right click on MANU application icon

Select Open

In opened window select Open

Select Create project in Welcome window

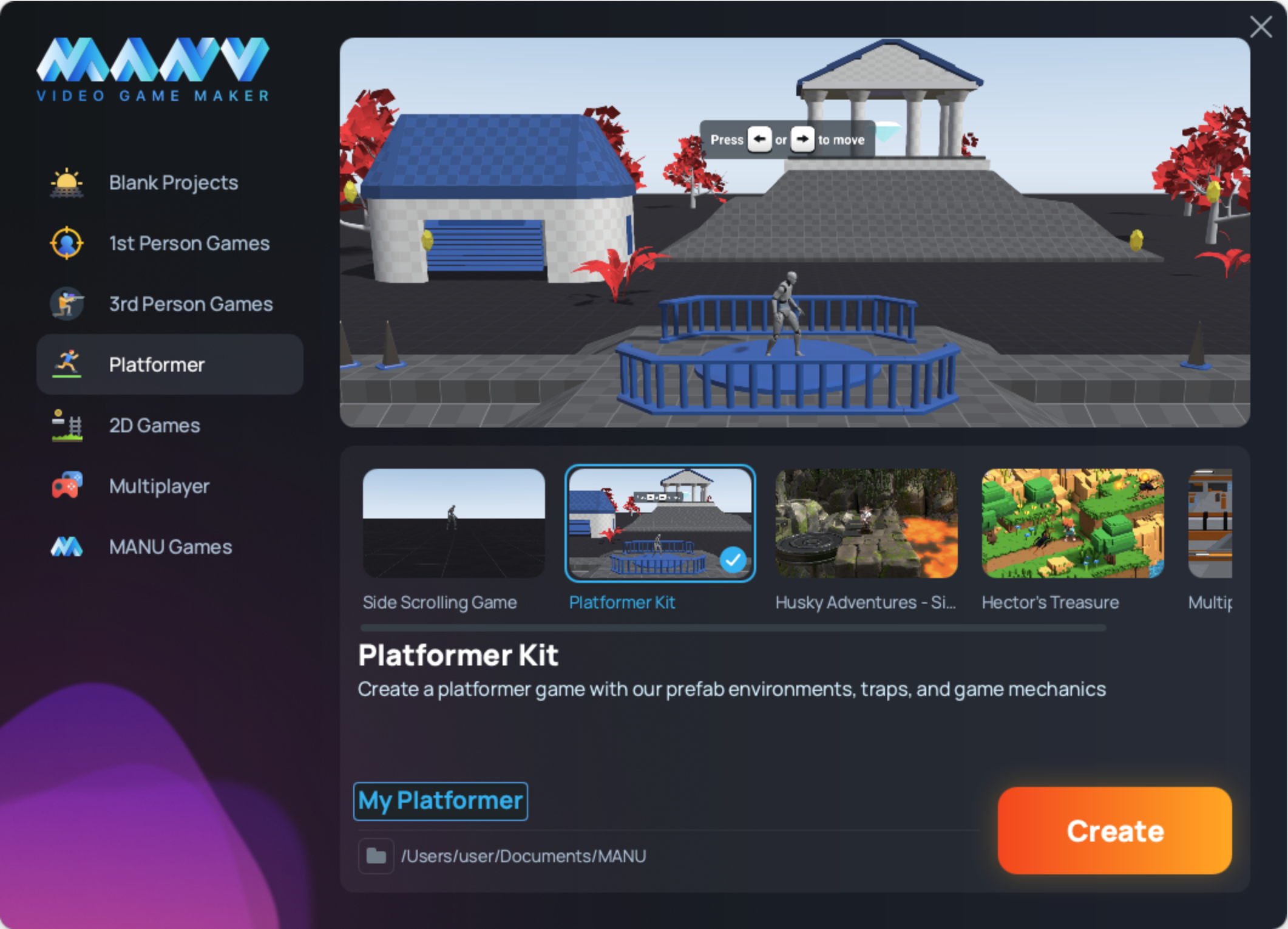

In Project creation window select desired template, name your project and press Create.

It depends on what type of game mechanics you want to do in your project. If you are the beginner, we recommend you start with Platformer Kit template, to learn basics of MANU.

By default projects saving in your Documents folder. You always can change location of the project in Create project window, by clicking on a folder icon, under name of project.

There is some methods:

By click and hold Right mouse button and moving mouse.

By hold Alt (Option) + Left mouse button and moving mouse.

By hold Alt (Option) + WASD keys

More information in the Keyboard shortcuts.

Click with Left mouse button in the right bottom corner of a icon of a Box object. In appeared popup you can select other 3D object.

Select needed object.

In Gizmo toggle under Mode toggle select Move icon.

In a viewport Move gizmo appears on selected object.

Move cursor on one of the Gizmo axis (Red :X, Green:Y, Z:Blue)

Click and Hold cursor on selected axis and move mouse. Object will also move along selected axis.

Also you can move object in selected plane.

Move cursor on one of the Gizmo axis on colored square between axises. (Red-Green: XY plane, Red-Blue: XZ plane, Green-Blue: YZ plane)

Click and Hold cursor on selected square and move mouse. Object will also move in selected plane.

More information learn in the Transforms chapter.

Select needed object.

In Gizmo toggle under Mode toggle select Rotate icon.

In a viewport Rotate gizmo appears on selected object.

Move cursor on one of the Gizmo axis (Red :X, Green:Y, Z:Blue)

Click and Hold cursor on selected axis and move mouse. Object will rotate along selected axis by 1 degree.

Select needed object.

In Gizmo toggle under Mode toggle select Scale icon.

In a viewport Scale gizmo appears on selected object.

Move cursor on one of the Gizmo axis (Red :X, Green:Y, Z:Blue)

Click and Hold cursor on selected axis and move mouse. Object will scale along selected axis.

Also you can scale object in selected plane.

Move cursor on one of the Gizmo axis on colored square between axises. (Red-Green: XY plane, Red-Blue: XZ plane, Green-Blue: YZ plane)

Click and Hold cursor on selected square and move mouse. Object will scale in selected plane.

More information learn in the Transforms chapter.

While Move gizmo selected, there is a Snap control under gizmo toggle with two snap settings. Selecting one of them you can adjust exact step of Move gizmo.

Select the first setting and Snapping grid will appears on the Movie gizmo.

Now, while you will move selected object by grid step setting value.

Select 3D object

In object inspector select Material tab

Click on Create new material icon in the right from Select Material...

New material would be created with PBR Shader.

To change color of the object adjust Albedo Tint parameter.

To learn more explore Materials chapter.

Select object

Click right mouse button on it and open context menu

Select Group

Selected object moved to group

To add other objects in created group just Drag&Drop them in it, one by one.

For now, functionality of multiselect is not developed. Keep an eye for updates.

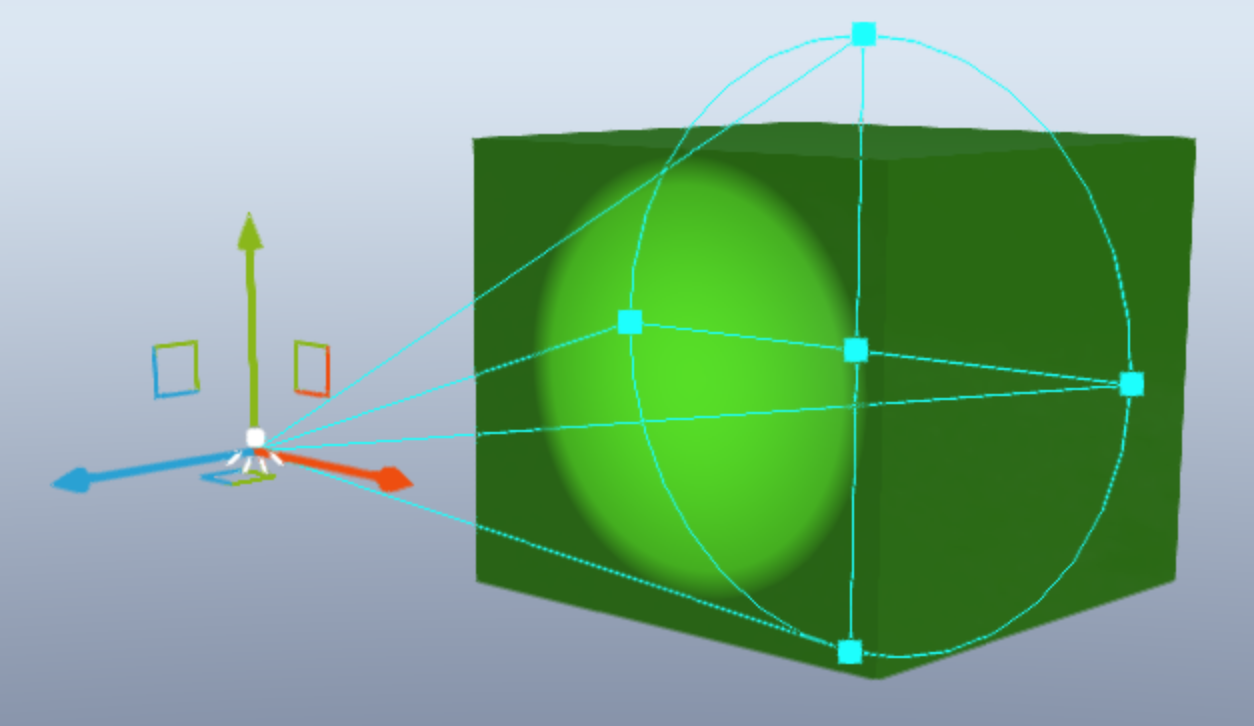

Hover and click on Spot Light icon in main toolbar.

New lightsource created in scene.

You can adjust it's settings, such as color, intensity and range in object inspector, on the left of screen.

You can use Move and Rotate gizmos to set lightsource in desired position.

Select Project tab in top left corner of a screen.

Select Sun in Environment section

Change Sun Color parameter in object inspector to the right.

Main Character and other object can physicaly interact with other objects if they have Physics component.

To add Physics component to the object, select it and switch to Physics tab below object inspector

Set parameter Physical to YES by clicking on it

Now click on Rigidbody parameter value

There are four types on Physical objects. But for now you may choose from three:

Static - is good for creating objects which would be static in scene, such as floor, walls, static platforms, rocks etc.

Dynamic - is good for objects which can be moved in scene naturaly like common physic objects, such as barells, light boxes, chairs, bottles etc.

Kinematic - is good for objects which would be animated and would interracting with Main Character or other scene objects, such as moving platforms, doors, enemies, traps, vehicles etc.

Know more in Physics chapter.

Hover and click on Animation icon in main toolbar.

Animation object would be created in Scene tree

Switch to Animation mode in Mode toggle.

Timeline pannel would be appeared at the bottom of a screen

Click on the leftmost icon Timeline, Add object

In appeared Object picker select needed object to animate (Box for example)

Object to animate added to Timeline

Hover on object in Timeline and click on "+" icon on it. Animatable Parameter selector would popup.

Select Parameter to animate (Position by X for example)

Parameter Position X would be added to Timeline and first keyframe of this parameter would be added. Click on a keyframe (red dot on timeline) and change it's value from "origin" to "0".

Hover and click on Position X track around 2.0 seconds timeline position. In appeared popup enter value "2" and click outside popup.

Select keyframe at 4 seconds similar previous step and set keyframe value to "0".

Click on the Loop control in Timeline panel. Animation loop is toggled now.

Animation created. We just need to start it on the game start.

Switch Timeline tab to Trigger panel

In Trigger panel click on Add Trigger button

In Trigger event popup select "On Launch Scene"

Now toggle Game Mode

You'll see the Box object (or other, if you selected it) is moving looped from position 0 (by X) to position 2 and back to 0.

Know more in Animation and Trigger chapters.

There to ways to add object in the timeline.

First way

Click on the leftmost icon Timeline, Add object

In appeared Object picker select needed object to animate (Box for example)

Object to animate added to Timeline

Second way

In Animation mode hover cursor on needed object (don't select it) and click right mouse button.

In appeared context menu select Add to timeline

Object added in Timeline

Several options are possible here:

1. You didn't set trigger which start animation of object

2. Trigger events are not get true

3. Object have Rigidbody property set to Static or Dynamic, those Rigidbody types can't be animated

4. Coordinates set in keyframes of object are wrong or too small

5. You animate object outside of your field of view

In Edit Mode goto Main Menu (MANU logo in top left corner) next File>Import

In opened Explorer or Finder select 3D file to import. MANU supports .obj, .fbx, .dae file formats.

Switch to Project panel

Select Fog in Evironment and toggle it's switch Enabled.

In inspector you can choose 3 different types of fog and adjust fog range and it's color.

To enable mouse look in Game Mode in First or Thrid person mode press "~" (tilda) on keyboard.

To place sound in Scene

Click Speaker object in main Toolbar

Speaker object would be created

Adjust parameters of Speaker in Inspector, minimum and maximum sound Attenuation

Create Animation or select existed. Switch to Animation mode.

Click Add Object in Timeline toolbar and select created Speaker

Speaker will appeared in timeline

Click Speaker track and click Add Animatable Parameter icon and select Audio Track in object picker

Click on Audio Track desired time position

In poped Explorer (Finder) select audio file you want

Audio Track would be filled with selected Sound

Click on track in Timeline to adjust its parameters

Don't forger to set Trigger to start sound (On Launch Scene for example) To apply Sound to Animation

Click on Add sound in Timeline toolbar

Audio track would be added in timeline

Click on Audio Track desired time position.

In poped Explorer (Finder) select audio file you want

Selected sound would be placed on timeline

Also dont forget apply Trigger to start animation. For example Collision trigger for Main Character and Box (don't forget make Box Physic)

Start Game Mode and check collision. Sound would be played.

Know more in Speaker chapter
